Cu SCR Marine Catalytic Converter Selective Catalyst IATF 16949
-
High Light
Cu SCR Marine Catalytic Converter
,Selective Catalyst IATF 16949
,Cu SCR Selective Catalyst
-
SubstrateCubic
-
Cell Density35 - 200 CPSI
-
StandardIMO III
-
ApplicationNone Road Engine/Marine Engine Aftertreatment
-
Place of OriginChina
-
Brand NameSinocat
-
CertificationIATF 16949
-
Model NumberMarine Fe-Cu-SCR
-
Minimum Order Quantity50 Pcs
-
PriceAs per technical requirements.
-
Packaging DetailsCarton in Pallet
-
Delivery Time3 Weeks
-
Supply Ability100,000 pcs per month.
Cu SCR Marine Catalytic Converter Selective Catalyst IATF 16949
Selective Catalytic Reduction For Ship & Marine Cu-SCR

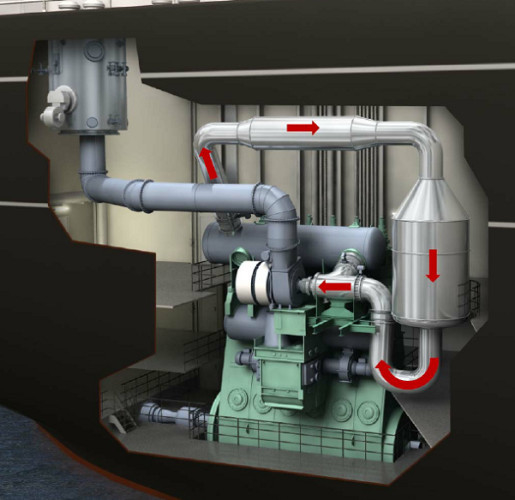

Selective Catalytic Reduction system is used to reduce NOx emission from ship and marine engines.

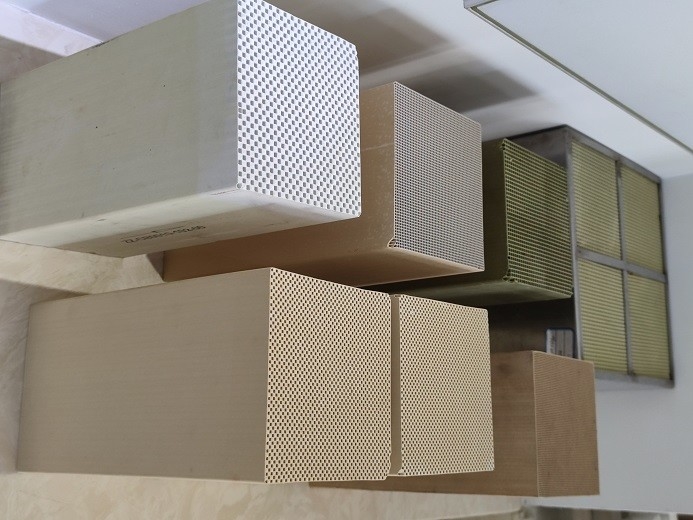

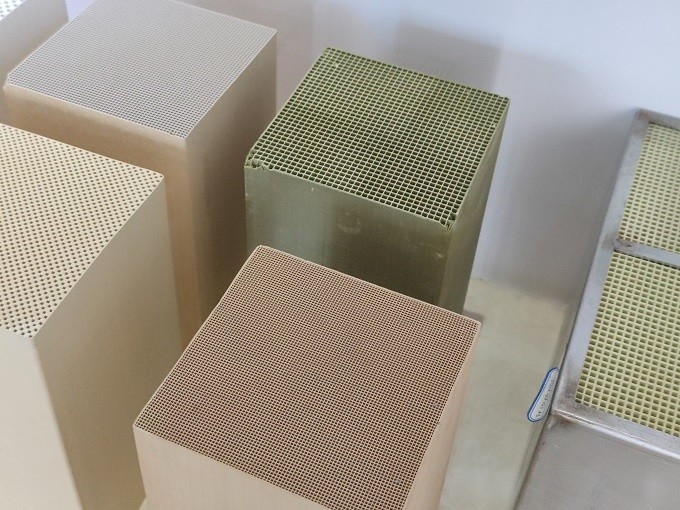

Substrate:
Cubic 150*150*100mm to 400mm (height)
Mesh: 35CPSI, 46 CPSI, 100 CPSI, 200 CPSI
Features:
1. High urea injection precision.
2. Good performance in urea atomization and hydrolysis.
3. Air mixing uniformity reaches 90% and above.
4. Good resistence to sulphur.
5. Long service life.
6. At engine stable operation, conversion rate is above 60% when exhaust inlet temperature at 250 ℃; above 80% when temperature is 450 ℃.
7. SCR can work at temperature range from -20 ℃ to 70 ℃.
Technical Parameters:
| Type | Coating | Stability of High Temperature | Temperature Window | Standard |
| Cu-SCR | Cu-Zeolite | 650 ℃ | 180 ℃-550 ℃ | IMO III |
Meet IMO III emission standard and above.
