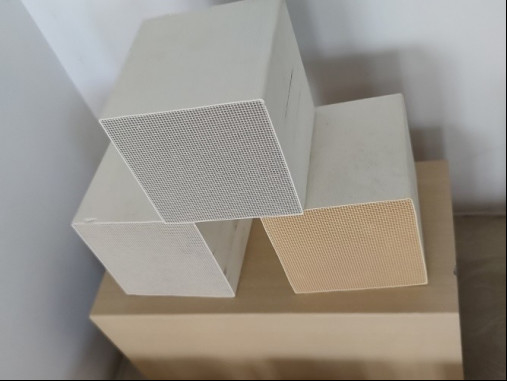

ZVPD Cubic VOC Oxidation Catalyst 200 300 CPSI Voc Removal Catalyst

ZVPD Cubic VOC Oxidation Catalyst 200 300 CPSI Voc Removal Catalyst

  • High Light

    300 CPSI VOC Oxidation Catalyst


    Cubic VOC Oxidation Catalyst


    200 CPSI Voc Removal Catalyst

  • Application
    Factory VOCs Treatment
  • Material
    Cordierite, Mullite, Alumina Corundum And Corundum Mullite, Etc.
  • Coating Material
    Precious Metal, Rare Earth Element
  • Hole Shape
    Square, Rectangular, Hexagonal, Circular, Triangular, Etc.
  • Color
  • Cell Density
    200 - 300 CPSI
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 Set
  • Price
    As per technical requirements.
  • Packaging Details
    As per requirement.
  • Delivery Time
    45 days
  • Supply Ability
    200 sets per month.

ZVPD Cubic VOC Oxidation Catalyst 200 300 CPSI Voc Removal Catalyst

ZVPD Cubic VOC Oxidation Catalyst 200 300 CPSI Voc Removal Catalyst


ZVPD type organic waste gas purification catalyst uses high temperature and high specific surface area modified alumina, high performance rare earth oxygen storage material and perovskite transition oxide as the catalytic material carrier, and uses precious metal platinum (PT) and palladium (PD) as the main active components . By perfectly matching the catalytic material with the active species of the noble metal and dispersing them uniformly into the catalytic material, a catalyst with low ignition temperature and high durability is formed. It is a low-temperature and high-efficiency industrial waste gas purification catalyst with independent patent rights.



The catalyst is suitable for purifying industrial VOCs exhaust gas containing ozone (O3), carbon monoxide (CO), hydrocarbon (CxHy), benzene and its derivatives, olefins and its derivatives and aldehydes.


Advantages of honeycomb ceramic heat accumulator

1. Low coefficient of thermal expansion.
2. Large surface area, good thermal stability, corrosion resistance.
3. High temperature heat accumulation and heat exchange in the treatment of industrial waste gas.


1. High purification efficiency.

When the concentration of hydrocarbon organic matter is in the range of 300~8000mg/m3, the air velocity is 5000-15000 h-1 and the inlet temperature of reaction gas is 300~550°C, the purification efficiency is more than 99%, which is thorough without secondary pollution.

Performance Comparison (Red & Purple: Sinocat Designs)

ZVPD Cubic VOC Oxidation Catalyst 200 300 CPSI Voc Removal Catalyst 0

2. Good Thermal Stability.

The catalyst can withstand instantaneous thermal shock of high temperature of 600°C.

3. Long Service Life

The catalyst has a service life more than two years. Specific service life can be customized according to the user’s requirements.

4. Strong Anti-poisoning Performance.

It can tolerate a certain concentration of S, Pb, As and other compounds.

5. Wide Range of Application.

ZVMC can be used in chemical, printing, food, machinery, instrumentation, manufacturing, coating, petrochemical, pharmaceutical and many other industries.


Product specifications:

Dimensions 100mm*100mm*50mm 150mm*150mm*150mm
Cell Density 200 cells/in2 ;300 cells/in2 200 cells/in2 ;300 cells/in2
Type Honeycomb coating
Airspeed Range 5000-30000h-1
Remarks 1. Cross-section dimension:100*100,150*150.
2. Carrier height:50mm~400mm
3. Number of cells:35 cells/in2~400 cells/in2
4. Can be designed on the specific requirement of each customer


Customer Service:

Our company can provide customized solutions according to the type and concentration of gas.
