Sinocat Environmental Technology Co.,Ltd. 86-28-62825888
Rare Earth Honeycomb Volatile Organic Compounds Catalyst ZVMC Type

Rare Earth Honeycomb Volatile Organic Compounds Catalyst ZVMC Type

  • High Light

    Rare Earth Honeycomb voc catalyst


    ZVMC Organic Compounds Catalyst


    ZVMC Type voc catalyst

  • Application
    Factory VOCs Treatment
  • Substrate Material
    Aluminum Alloy And Others
  • Coating Materials
    Precious Metal/ Rare Earth
  • Shape
  • Cell Density
    200 - 300 CPSI
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 Set
  • Price
    As per technical requirements.
  • Packaging Details
    As per requirement.
  • Delivery Time
    45 days
  • Supply Ability
    200 sets per month.

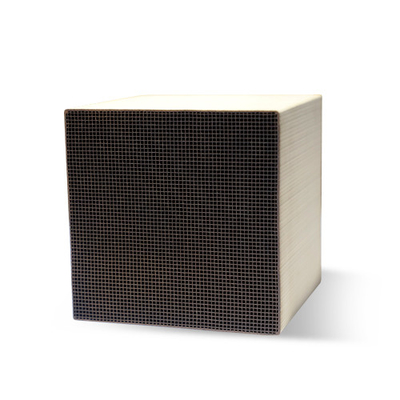

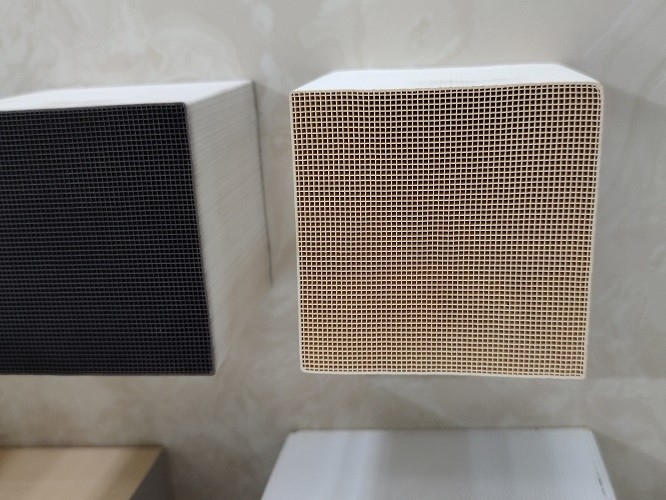

Rare Earth Honeycomb Volatile Organic Compounds Catalyst ZVMC Type

ZVMC Type Volatile Organic Compounds Purification Catalyst (ZVMC for VOCs)


ZVMC-type organic exhaust gas purification catalyst is a new type of high efficiency industrial exhaust gas purification catalyst, which takes high temperature and high specific surface area materials, high performance rare earth oxygen storage materials as catalytic material carrier, and transition metals such as Cu, Mn and CO as main active components. These ingredients above are uniformly distributed in the catalytic material to form a catalyst with low ignition temperature and high durability.




This type of catalysts are suitable for purifying industrial VOCs exhaust gas containing carbon monoxide (CO), formaldehyde, aldehyde derivatives, hydrocarbons, benzene and its derivatives, aromatic hydrocarbons and its derivatives.




1. High purification efficiency.

When the concentration of hydrocarbon organic matter is in the range of 300~8000mg/m3, the air velocity is 5000-15000 h-1 and the inlet temperature of reaction gas is 300~550°C, the purification efficiency is more than 99%, which is thorough without secondary pollution.


2. Good Thermal Stability.

The catalyst can withstand instantaneous thermal shock of high temperature of 600°C.


3. Long Service Life

The catalyst has a service life more than two years. Specific service life can be customized according to the user’s requirements.


4. Strong Anti-poisoning Performance.

It can tolerate a certain concentration of S, Pb, As and other compounds.


5. Wide Range of Application.

ZVMC can be used in chemical, printing, food, machinery, instrumentation, manufacturing, coating, petrochemical, pharmaceutical and many other industries.


Product specifications:

Dimensions 100mm*100mm*50mm 150mm*150mm*150mm
Cell Density 200 cells/in2 ;300 cells/in2 200 cells/in2 ;300 cells/in2
Type Honeycomb coating
Airspeed Range 5000-30000h-1
Remarks 1. Cross-section dimension:100*100,150*150.
2. Carrier height:50mm~400mm
3. Number of cells:35 cells/in2~400 cells/in2
4. Can be designed on the specific requirement of each customer


Customer Service:

Our company can provide customized solutions according to the type and concentration of gas.
