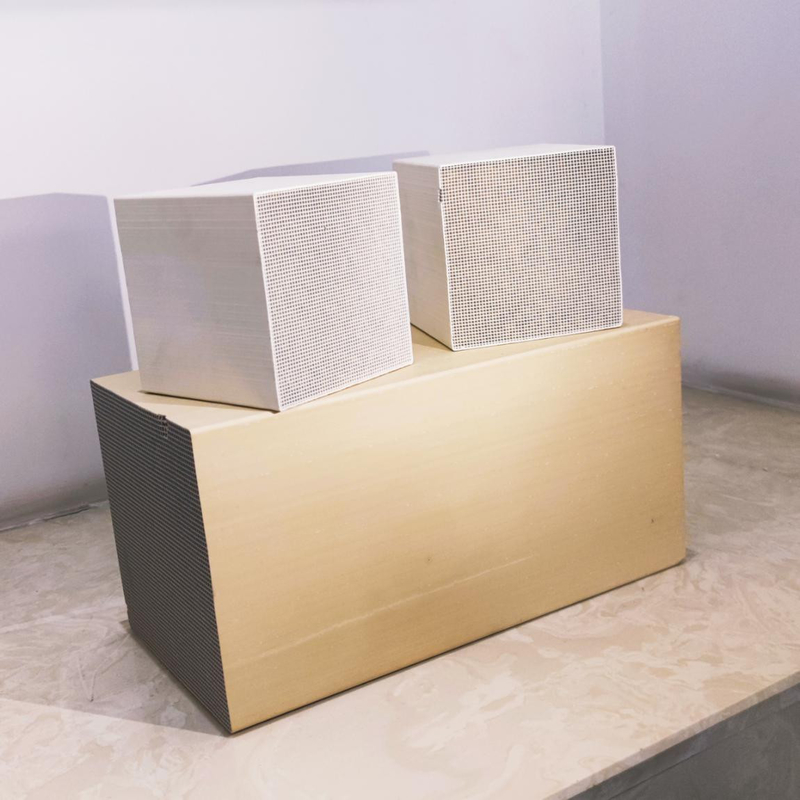

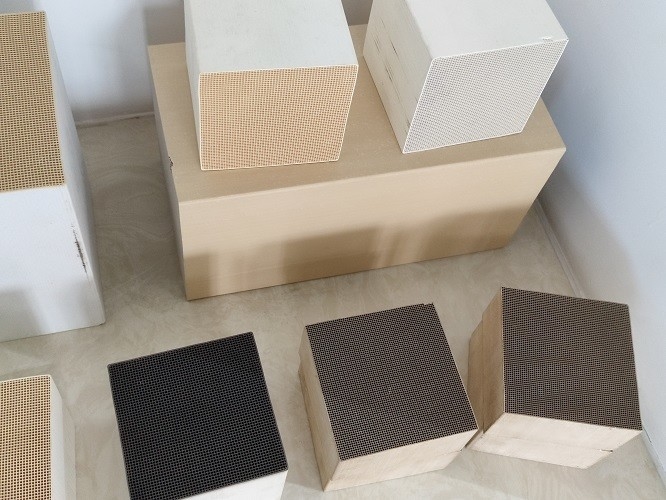

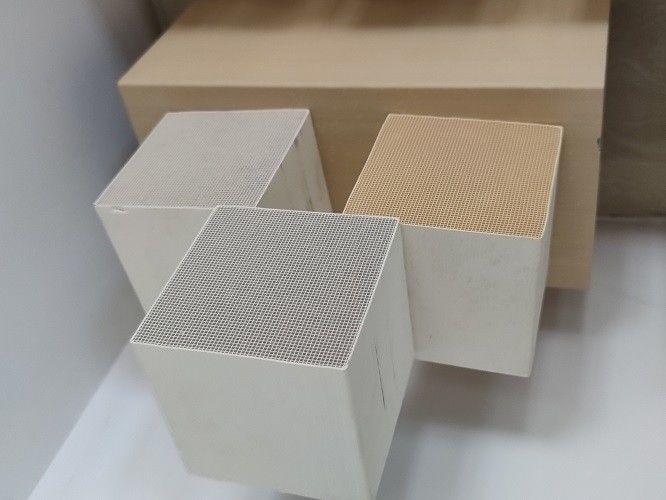

ZVPD Cubic VOC Oxidation Catalyst 200 300 CPSI Voc Removal Catalyst

ZVPD Cubic VOC Oxidation Catalyst 200 300 CPSI Voc Removal Catalyst

  • High Light

    ZVPD Cubic VOC Oxidation Catalyst


    300 CPSI Voc Removal Catalyst


    VOC Oxidation Catalyst 200 300 CPSI

  • Application
    Factory VOCs Treatment
  • Substrate Material
    Aluminum Alloy And Others
  • Coating Material
    Precious Metal, Rare Earth Element
  • Shape
  • Color
  • Cell Density
    200 - 300 CPSI
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 Set
  • Price
    As per technical requirements.
  • Packaging Details
    As per requirement.
  • Delivery Time
    45 days
  • Supply Ability
    200 sets per month.

ZVPD Cubic VOC Oxidation Catalyst 200 300 CPSI Voc Removal Catalyst

ZVPD Type Volatile Organic Compounds Purification Catalyst (ZVPD for VOCs)


ZVPD-type organic exhaust gas purification catalyst takes modified alumina of high temperature and high specific surface area, rare earth oxygen storage material of high performance, and perovskite-type transition oxide as catalytic material carrier, it takes precious metal platinum (PT) and palladium (PD) as main active components. By matching catalytic materials and active species of precious metal perfectly, and dispersing them into the catalytic materials evenly, the catalyst with low ignition temperature and high durability is formed. It is a low temperature and high efficiency industrial exhaust gas purification catalyst with independent patent right.




The catalyst is suitable for purifying industrial VOCs exhaust gas containing ozone (O3), carbon monoxide (CO), hydrocarbon (CxHy), benzene and its derivatives, olefins and its derivatives and aldehydes.




1. High purification efficiency.

When the concentration of hydrocarbon organic matter is in the range of 300~8000mg/m3, the air velocity is 5000-15000 h-1 and the inlet temperature of reaction gas is 300~550°C, the purification efficiency is more than 99%, which is thorough without secondary pollution.


Performance Comparison (Red & Purple: Sinocat Designs)


ZVPD Cubic VOC Oxidation Catalyst 200 300 CPSI Voc Removal Catalyst 0


2. Good Thermal Stability.

The catalyst can withstand instantaneous thermal shock of high temperature of 600°C.


3. Long Service Life

The catalyst has a service life more than two years. Specific service life can be customized according to the user’s requirements.


4. Strong Anti-poisoning Performance.

It can tolerate a certain concentration of S, Pb, As and other compounds.


5. Wide Range of Application.

ZVMC can be used in chemical, printing, food, machinery, instrumentation, manufacturing, coating, petrochemical, pharmaceutical and many other industries.


Product specifications:


Dimensions 100mm*100mm*50mm 150mm*150mm*150mm
Cell Density 200 cells/in2 ;300 cells/in2 200 cells/in2 ;300 cells/in2
Type Honeycomb coating
Airspeed Range 5000-30000h-1
Remarks 1. Cross-section dimension:100*100,150*150.
2. Carrier height:50mm~400mm
3. Number of cells:35 cells/in2~400 cells/in2
4. Can be designed on the specific requirement of each customer


Customer Service:

Our company can provide customized solutions according to the type and concentration of gas.
