Metal Honeycomb Substrate Motorcycle Catalytic Converter For Bike Exhaust Pt Pd Rh

Metal Honeycomb Substrate Motorcycle Catalytic Converter For Bike Exhaust Pt Pd Rh

Products - Motorcycle Catalytic Converter
  • High Light

    Metal Honeycomb Motorcycle Catalytic Converter

    ,

    Catalytic Converter For Bike Exhaust Pt Pd

    ,

    Pt Pd Rh Motorcycle Catalytic Converter

  • Substrate Material
    Metal
  • Coating
    Precious Metal
  • Emission Standard
    Euro IV, Euro V, BS IV, BS V, BS VI
  • Cell Density
    250 CPSI
  • Place of Origin
    China
  • Brand Name
    Sinocat
  • Certification
    IATF 16949 ISO 9001
  • Model Number
    Motorcycle TWC
  • Minimum Order Quantity
    50 Pcs
  • Price
    As per specification.
  • Packaging Details
    Carton in Pallet
  • Delivery Time
    30 Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    500,000 pcs per month.

Metal Honeycomb Substrate Motorcycle Catalytic Converter For Bike Exhaust Pt Pd Rh

  • Metal Honeycomb Substrate Motorcycle Catalytic Converter For Bike Exhaust Pt Pd Rh
  • Metal Honeycomb Substrate Motorcycle Catalytic Converter For Bike Exhaust Pt Pd Rh
Get Price Contact Now

Metal Honeycomb Substrate Euro 4/5 Pt Pd Rh Motorcycle Catalyst

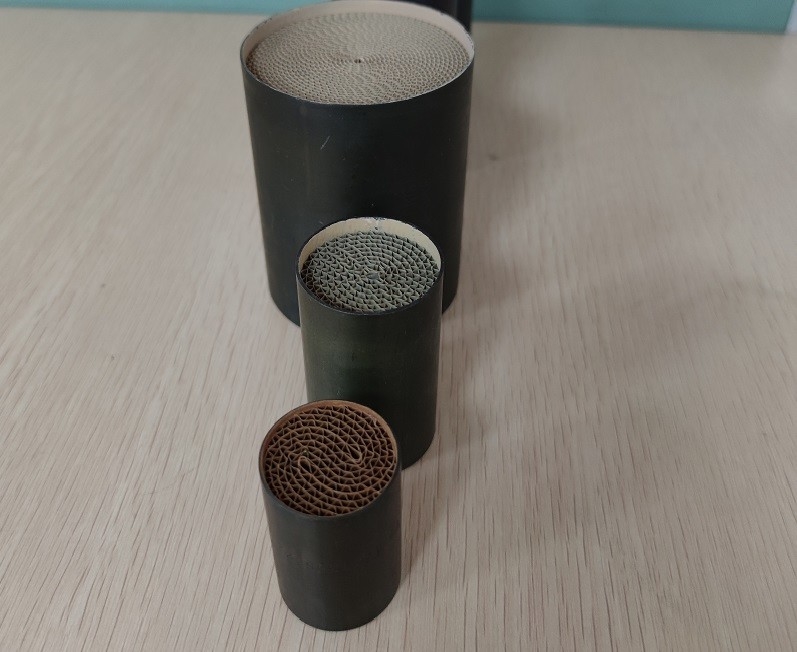

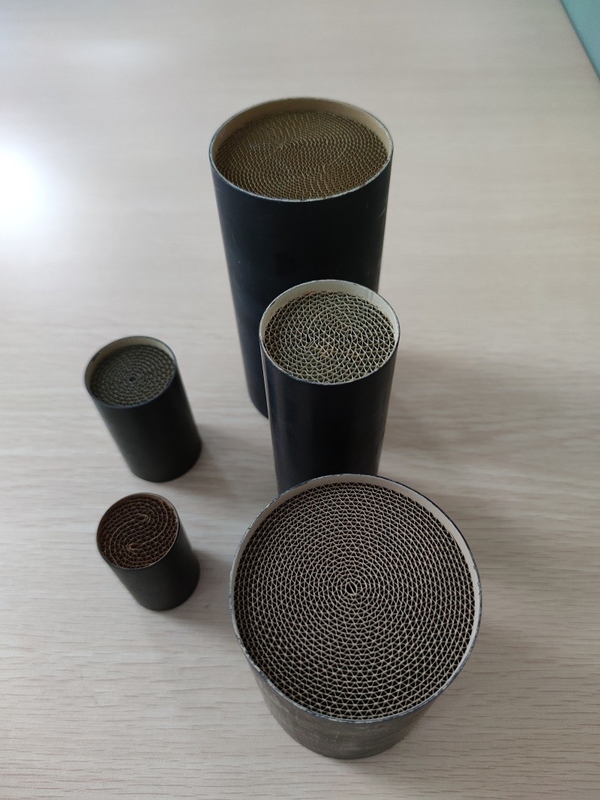

Our motorcycle catalyst has past through the strict test of endurance and meet European emission standard. Loss of motorcycle's power is less than 3%. We could customize the products according to clients' different requirement. Our catalyst is a compound catalyst with rare earth element and noble metals of PT, Pd, Rh, when the exhaust is passing through the three-way catalyst, the CO would be oxidized into CO2, the HC is turned into H2O and CO2, and the NOX is deoxidized into nitrogen. Metal carrier catalysts are made in metal honeycomb carrier with stainless steel crust and Fe-Cr-Al core, it is widely used in motorcycles and off-road engines.



  • 2 NO + 2 CO → N2 + 2 CO2
  • 2 CO + O2 → 2 CO2
  • 2 C2H6 + 7 O2 → 4 CO2 + 6 H2O





With high specific surface area alumina and high oxygen storage rare earth materials as carriers, Pt/Pd/Rh precious metals as active components, it is accurately controlled by quantitative coating method, and the conversion efficiency of CO, HC, NOx is ≥90%, and has excellent anti-aging properties. The products meet the requirements of Euro 4/Euro 5 regulations, and can develop special types and structures of catalysts according to the special needs of customers.



Features:



Ø Catalyst substrate material & Type: Honeycomb ceramic substrate, metal substrate.

Ø Catalyst Materials: Platinum, palladium, rhodium, other precious metals and rare earth elements.

Ø  Excellent coating for solid, long lasting and stable catalytic performance.

Ø  Advanced technology and packaging techniques carriers to ensure reliable thermal shock and mechanical stability.

Ø Can be designed as per various clients' requirements.

Ø Compatibility with different motorcycles.

Ø Conform to  Euro III, Euro IV, Euro V, Barat Standard IV, BS V, BS VI, CARB, EPA standards.



Technical Parameters



Light-off Temperature Durability Conversion Efficiency Coating Desquamate Rate
T50(CO)≤230 T50(HC)≤260 T50(NOX)≤250 40000-50000KM CO≥85% HC≥80% CO≥85% ≤7%



Dimensions & Cell Density (CPSI):



Dimensions(mm) Cell Density (CPSI) Foil thickness(mm)
Diameter from 28mm to 550mm, length up to 300mm 50, 100, 200,250,300,400,500,600, 0.03,0.04, 0.05,0.06,0.08,0.10



With high specific surface area alumina and high oxygen storage rare earth materials as carriers, Pt/Pd/Rh precious metals as active components, it is accurately controlled by quantitative coating method, and the conversion efficiency of CO, HC, NOx is ≥90%, and has excellent anti-aging properties. The products meet the requirements of Euro 4/Euro 5 regulations, and can develop special types and structures of catalysts according to the special needs of customers.



Metallic substrate has the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorcycle. We can make 100CPSI, 200CPSI, 300CPSI, 400CPSI AND 600CPSI honeycomb metallic substrate in various shapes, such as round, oval, racetrack and other customized shapes. We constantly improve the quality and service. Our products get high reputation from customers.



Specifications of Motorcycle Catalysts:

Specification Cell Density (CPSI) Emission Standard
25*50*50 100/200/300/400 Euro 4, Euro 5
28*40*30 100/200/300/400 Euro 4, Euro 5
28*60*50 100/200/300/400 Euro 4, Euro 5
28*100*90 100/200/300/400 Euro 4, Euro 5
30*20*20 100/200/300/400 Euro 4, Euro 5
30*30*30 100/200/300/400 Euro 4, Euro 5
32*25*25 100/200/300/400 Euro 4, Euro 5
35*30*30 100/200/300/400 Euro 4, Euro 5
35*32*32 100/200/300/400 Euro 4, Euro 5
35*40*30 100/200/300/400 Euro 4, Euro 5
35*45*45 100/200/300/400 Euro 4, Euro 5
35*50*40 100/200/300/400 Euro 4, Euro 5
35*52*50 100/200/300/400 Euro 4, Euro 5
35*60*50 100/200/300/400 Euro 4, Euro 5
35*70*50 100/200/300/400 Euro 4, Euro 5
35*70*60 100/200/300/400 Euro 4, Euro 5
35*100*40 100/200/300/400 Euro 4, Euro 5
35*100*50 100/200/300/400 Euro 4, Euro 5
35*100*60 100/200/300/400 Euro 4, Euro 5
35*100*80 100/200/300/400 Euro 4, Euro 5
35*100*90 100/200/300/400 Euro 4, Euro 5
35*120*110 100/200/300/400 Euro 4, Euro 5
35*130*120 100/200/300/400 Euro 4, Euro 5
35*140*110 100/200/300/400 Euro 4, Euro 5
35*200*180 100/200/300/400 Euro 4, Euro 5
36*100*100 100/200/300/400 Euro 4, Euro 5
38*100*100 100/200/300/400 Euro 4, Euro 5
39*60*50 100/200/300/400 Euro 4, Euro 5
40*60*50 100/200/300/400 Euro 4, Euro 5
40*80*80 100/200/300/400 Euro 4, Euro 5
41*100*100 100/200/300/400 Euro 4, Euro 5
42*45*45 100/200/300/400 Euro 4, Euro 5
42*50*40 100/200/300/400 Euro 4, Euro 5
42*50*50 100/200/300/400 Euro 4, Euro 5
42*60*40 100/200/300/400 Euro 4, Euro 5
42*60*50 100/200/300/400 Euro 4, Euro 5
42*100*50 100/200/300/400 Euro 4, Euro 5
42*100*60 100/200/300/400 Euro 4, Euro 5
42*100*80 100/200/300/400 Euro 4, Euro 5
42*100*90 100/200/300/400 Euro 4, Euro 5
45*60*50 100/200/300/400 Euro 4, Euro 5
45*60*60 100/200/300/400 Euro 4, Euro 5
45*75*70 100/200/300/400 Euro 4, Euro 5
45*80*70 100/200/300/400 Euro 4, Euro 5
45*100*90 100/200/300/400 Euro 4, Euro 5
45*110*100 100/200/300/400 Euro 4, Euro 5
45*110*85 100/200/300/400 Euro 4, Euro 5
45*110*90 100/200/300/400 Euro 4, Euro 5
45*112*100 100/200/300/400 Euro 4, Euro 5
45*112*40 100/200/300/400 Euro 4, Euro 5
45*112*60 100/200/300/400 Euro 4, Euro 5
45*120*80 100/200/300/400 Euro 4, Euro 5
45*130*120 100/200/300/400 Euro 4, Euro 5
45*140*101.6 100/200/300/400 Euro 4, Euro 5
45*150*140 100/200/300/400 Euro 4, Euro 5
50*100*100 100/200/300/400 Euro 4, Euro 5
50*50*40 100/200/300/400 Euro 4, Euro 5
52*100*90 100/200/300/400 Euro 4, Euro 5
52*105*85 100/200/300/400 Euro 4, Euro 5
52*105*85 100/200/300/400 Euro 4, Euro 5
52*110*90 100/200/300/400 Euro 4, Euro 5
52*125*85 100/200/300/400 Euro 4, Euro 5
52*125*85 100/200/300/400 Euro 4, Euro 5
60*62*60 100/200/300/400 Euro 4, Euro 5
60*75*65 100/200/300/400 Euro 4, Euro 5
62*160*150 100/200/300/400 Euro 4, Euro 5
62*60*50 100/200/300/400 Euro 4, Euro 5
71*99*74.5 100/200/300/400 Euro 4, Euro 5
71*99*79 100/200/300/400 Euro 4, Euro 5
72*120*110 100/200/300/400 Euro 4, Euro 5
72*50*40 100/200/300/400 Euro 4, Euro 5
72*85*75 100/200/300/400 Euro 4, Euro 5
72*85*75 100/200/300/400 Euro 4, Euro 5
80*65*50 100/200/300/400 Euro 4, Euro 5
Remark: Can be designed as per client's requirement.



About Sinocat



Sinocat Environmental Technology Co., Ltd. (Stock Code: 688737), founded in 2005, is listed on the science and Innovation Board of Shanghai Stock Exchange. The company is committed to the research and development of new materials and new energy technologies such as natural gas (CNG / LNG), diesel, gasoline and other fuel engine emission post-treatment catalysts (converters) and hydrogen fuel cell catalysts. The company is a key high-tech enterprise of the national Torch Plan technology, R&D, manufacture, sales and service.



Metal Honeycomb Substrate Motorcycle Catalytic Converter For Bike Exhaust Pt Pd Rh 0



The Main Entrance

Metal Honeycomb Substrate Motorcycle Catalytic Converter For Bike Exhaust Pt Pd Rh 1



The Office Building



Metal Honeycomb Substrate Motorcycle Catalytic Converter For Bike Exhaust Pt Pd Rh 2



Robots in the Factory



Metal Honeycomb Substrate Motorcycle Catalytic Converter For Bike Exhaust Pt Pd Rh 3



Robots in the Facotry



Metal Honeycomb Substrate Motorcycle Catalytic Converter For Bike Exhaust Pt Pd Rh 4



View of Workshop



Metal Honeycomb Substrate Motorcycle Catalytic Converter For Bike Exhaust Pt Pd Rh 5



View of Work Shop



Metal Honeycomb Substrate Motorcycle Catalytic Converter For Bike Exhaust Pt Pd Rh 6

Metal Honeycomb Substrate Motorcycle Catalytic Converter For Bike Exhaust Pt Pd Rh 7



Metal Honeycomb Substrate Motorcycle Catalytic Converter For Bike Exhaust Pt Pd Rh 8Metal Honeycomb Substrate Motorcycle Catalytic Converter For Bike Exhaust Pt Pd Rh 9



Inspection



Certificates



Sinocat attached high importance to our system building and is an IATF, ISO and other well-known international organizations certified company.









Packing & Shipment



Metal Honeycomb Substrate Motorcycle Catalytic Converter For Bike Exhaust Pt Pd Rh 10Metal Honeycomb Substrate Motorcycle Catalytic Converter For Bike Exhaust Pt Pd Rh 11Metal Honeycomb Substrate Motorcycle Catalytic Converter For Bike Exhaust Pt Pd Rh 12
