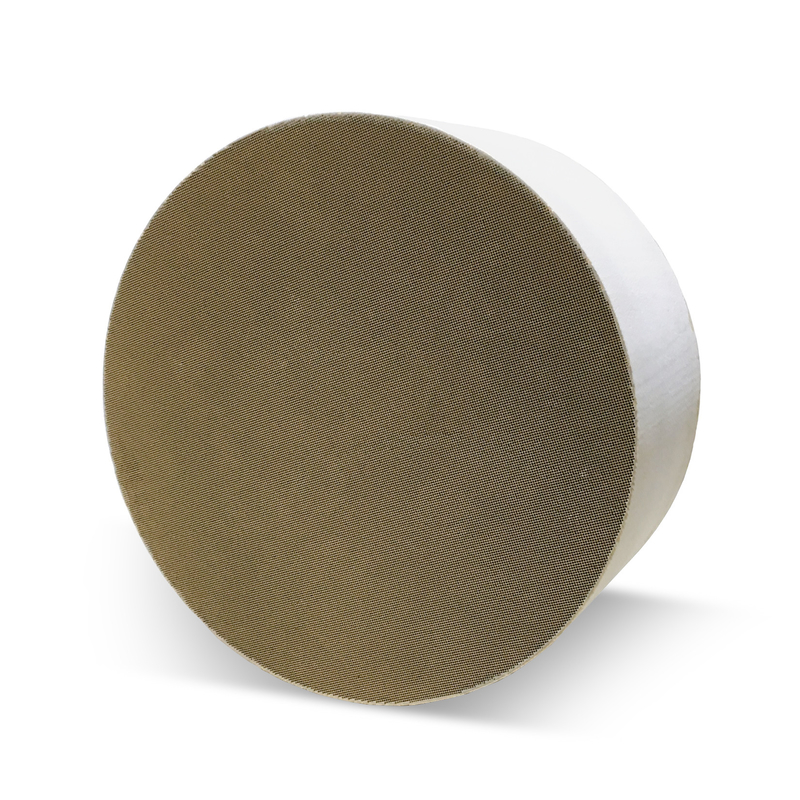

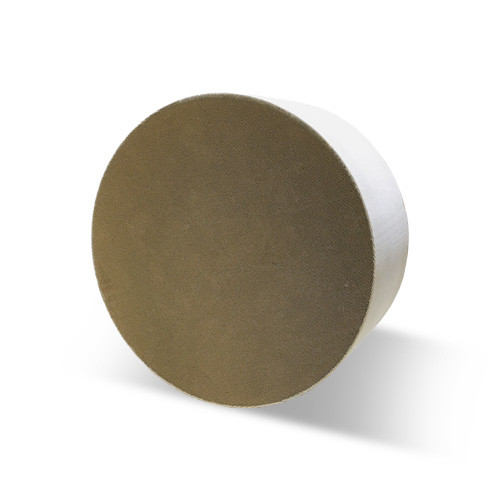

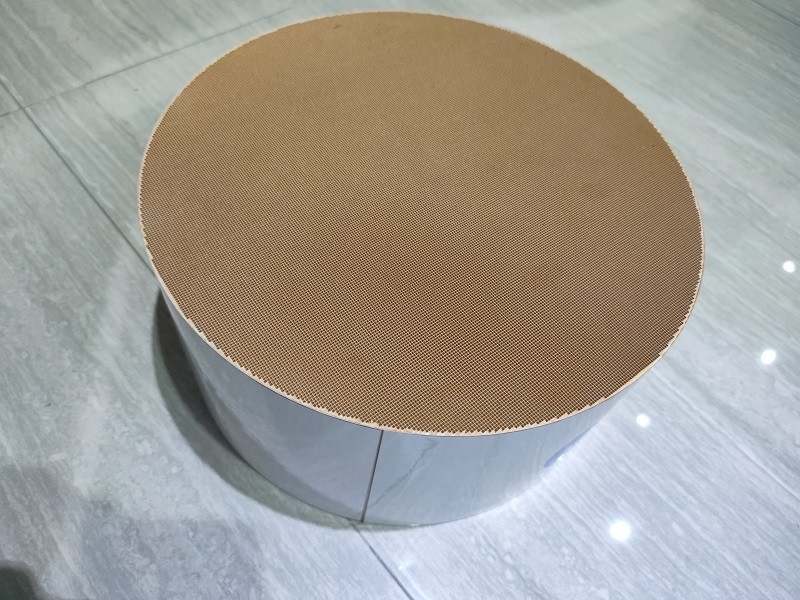

Cordierite Methane Oxidation Catalyst MOC
MOC are used for lean burn CNG, LNG and LPG engine exhaust aftertreatment. Catalytic technolodgy is used to convert the harmful CH4, NMHC, CO pollutants to harmless H2O, CO2 etc.
The catalysts are made by Pt/Pd coating layer and cordierite or ferrochrome aluminum alloy substrates.
Our natural gas oxidation can be used for road natural gas engines and emission standards meet Euro IV & Euro V.
Features:
1. Good light-off performance (low light-off termperature) and high pollutant conversion efficiency.
2. Exellent ractive activation and hydrothermal stability.
3. Can be used for mutiple application. We can develop different catalysts according to different engine and engine conditions.
4. Lower precious metal content which brings better cost performance.
5. Following National IV, National V and Euro IV, Euro V standards.
Technical Parameters:
Specification | Diameter (mm) | Length (mm) | Cell Density (CPSI) | Emission Standard |
Ø190.5*152.4 | 190.5 | 152.4 | 300/400 |
Euro 4/5 China 4/5 |
Ø240*100 | 240 | 100 | 300/400 |
Euro 4/5 China 4/5 |
Ø240*76.2 | 240 | 76.2 | 300/400 |
Euro 4/5 China 4/5 |
Ø266.7*152.4 | 266.7 | 152.4 | 400/600 |
Euro 4/5 China 4/5 |
Notes: | Other dimensions can be made by request. |
