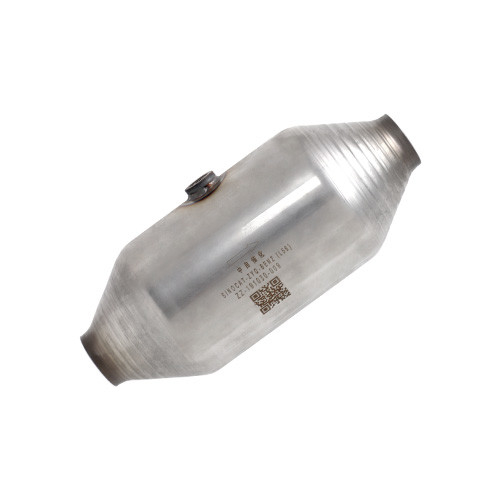

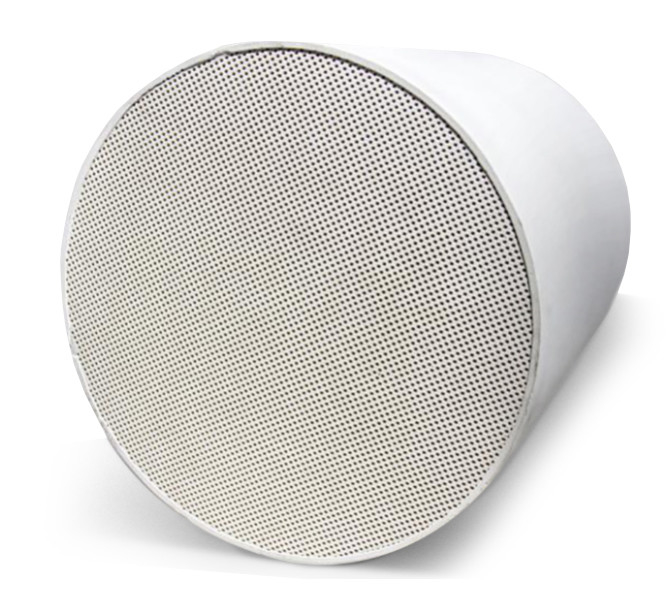

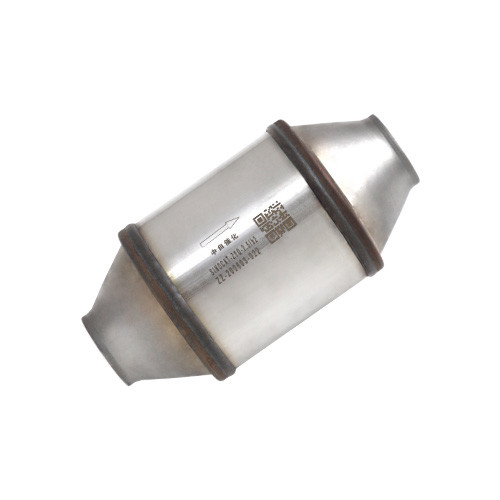

Automotive Catalysed Gasoline Particulate Filter for Euro IV Euro V Euro VI PM PN Filtration for After-treatment System cGPF
Sinocat cGPF can meet Euro VI, BS VI, China-VI stage and more strict norms on vehicles PM and PN emission requirements. Meanwhile, gaseous pollutants such as CO, HC and NOx are converted to harmless gas.
Catalyst coating can be regenerated.
Features:
Ø High efficiency in particulate filtering;
Ø Low back pressure;
Ø Full regeneration of GPF at 500C or above;
Ø High tolerance for ash accumulation.
Technical Parameters:
Specification | Cell Density (CPSI) | Emission Standard |
Ø118.4*101.6 | 200/300 | Euro VI BS VI |
Ø118.4*127 | 200/300 | Euro VI BS VI |
Ø118.4*136 | 200/300 | Euro VI BS VI |
Ø118.4*152.4 | 200/300 | Euro VI BS VI |
Ø132.1*101.6 | 200/300 | Euro VI BS VI |
Ø132.1*110 | 200/300 | Euro VI BS VI |
Ø132.1*127 | 200/300 | Euro VI BS VI |
Ø132.1*146 | 200/300 | Euro VI BS VI |
Ø143.8*123.2 | 200/300 | Euro VI BS VI |
Ø143.8*127 | 200/300 | Euro VI BS VI |
Ø143.8*152.4 | 200/300 | Euro VI BS VI |
