High Light
Three Way Catalysts Pt Pd Rh
,Pt Pd Rh auto catalytic converter
,700CPSI Three Way Catalysts
-
Substrate MaterialCeramic
-
Coating MaterialPrecious Metal, Rare Earth Element
-
ApplicationAuto Aftertreatment
-
Emission StandardEuro IV, Euro V, Euro VI, BS V, BS VI
-
Cell500 700CPSI
-
ColorYellowish
-
Place of OriginChina
-
Brand NameSinocat
-
CertificationIATF 16949
-
Model NumberTWC
-
Minimum Order Quantity50 Pcs
-
PriceAs per technical requirements.
-
Packaging DetailsCarton in Pallet
-
Delivery Time30 Days
-
Payment TermsL/C, T/T
-
Supply Ability500,000 pcs per month.
700CPSI Three Way Catalysts Pt Pd Rh Auto Catalytic Converter
Auto Three Way Catalyst With Pt Pd Rh

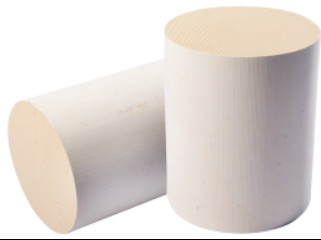

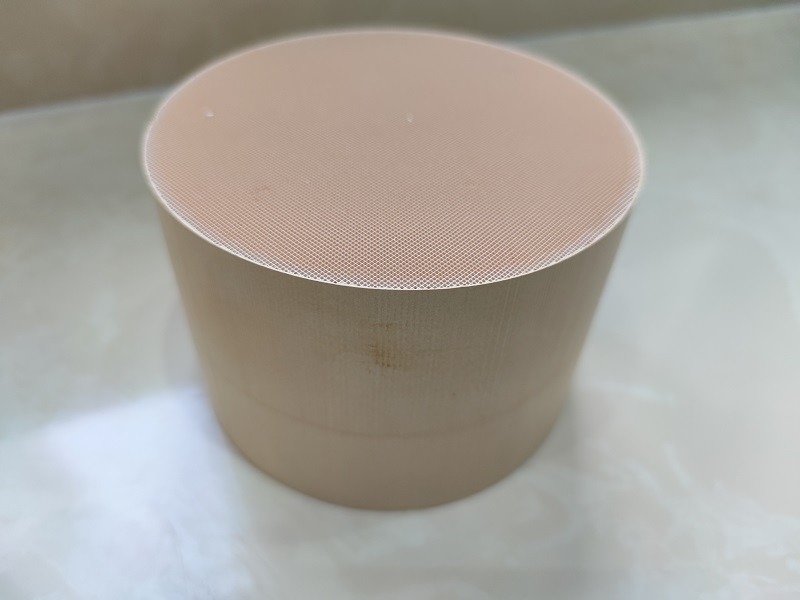

Sinocat auto three way catalyst with Pt, Pd, Rh use ceramic or metal honeycomb substrates as carriers, and uses unique coating materials and precious metal Pt Pd Rh as active components.
Our three way catalyst has high catalytic activity, good thermal stability and longservice life.
Features:
- 1. Our auto three way catalyst with Pt, Pd, Rh converson rate is very high (CO,THC,SOF ≥ 97%);
- 2. Low tempreture light off performance is good (T50 ≤ 180 ℃ ).
- 3. Precious metals & rare earth compound catalyst technology provides the high oxygen storage and high stability catalyst.
- 4. Precise control of precious metals and other materials during catalyst manufacturing process.
- 5. Vehicle complete system matching technology and systematic solutions for the customer.
- 6. Euro IV, Euro V, Euro VI, BS IV, BS V, BS VI Emission Standard.
To meet China National VI and Euro VI emission standards for gasoline cars, Sinocat developed heat-resistant and highly active TWC to convert the CO, THC and NOx in the exhaust gas. By controlling the micro physical structure of alumina and oxygen-storage materials, we use less precious metal to meet the durability requirements. Our TWCs can be installed to manifold, close to coupling or chassis.
Parameters of Auto Three Way Catalyst With Pt Pd Rh
| Specification | Diameter (mm) | Length (mm) | Cell Density (CPSI) | Emission Standard |
| Ø80*60 | 80 | 60 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø93*60 | 93 | 60 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø93*75 | 93 | 75 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø93*88.3 | 93 | 88.3 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø93×101.6 | 93 | 101.6 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø101.6*60 | 101.6 | 60 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø101.6*76.2 | 101.6 | 76.2 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø101.6*90 | 101.6 | 90 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø101.6*100 | 101.6 | 100 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø101.6*118 | 101.6 | 118 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø101.6*123.3 | 101.6 | 123.3 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø101.6*136 | 101.6 | 136 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø101.6*152.4 | 101.6 | 152.4 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø103*130 | 103 | 130 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø105.7*100 | 105.7 | 100 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø105.7*115 | 105.7 | 115 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø105.7*130 | 105.7 | 130 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø105.7*147.5 | 105.7 | 147.5 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø105.7*152.4 | 105.7 | 152.4 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø118.4*90 | 118.4 | 90 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø118.4*100 | 118.4 | 100 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø118.4*101.6 | 118.4 | 101.6 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø118.4*114.3 | 118.4 | 114.3 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø118.4*120 | 118.4 | 120 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø118.4*123.3 | 118.4 | 123.3 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø118.4*127 | 118.4 | 127 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø118.4*136 | 118.4 | 136 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø118.4*138 | 118.4 | 138 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø118.4*152.4 | 118.4 | 152.4 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø132.1*127 | 132.1 | 127 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø132.1*146 | 132.1 | 146 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø143.8*101.6 | 143.8 | 101.6 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Ø143.8*152.4 | 143.8 | 152.4 | 200/300/400/600/750 |
Euro 4/5/6 BS 4/5/6 |
| Remark: | We can also develop different TWCs according to client's requirements. | |||
