Gasoline Generator Catalytic Convertor
Features:
Ø Excellent coating for solid, long lasting and stable catalytic performance.
Ø Advanced technology and packaging techniques carriers to ensure reliable thermal shock and mechanical stability.
Ø Catalyst substrate: Honeycomb ceramic substrate, metal substrate.
Ø Catalyst: Platinum, palladium, rhodium, other precious metals and rare earth elements.
Ø Can be designed as per various clients' requirements.
Ø Compatibility with different gasoline generators.
Ø Conform to Euro III, Euro IV, Euro V, Barat Standard IV, BS V, BS VI, CARB, EPA standards.
Technical Parameters
Light-off Temperature | Durability | Conversion Efficiency | Coating Desquamate Rate |
T50(CO)≤230 T50(HC)≤260 T50(NOX)≤250 | 40000-50000KM | CO≥85% HC≥80% CO≥85% | ≤7% |
Dimensions & Cell Density (CPSI):
Dimensions(mm) | Cell Density (CPSI) | Foil thickness(mm) |
Diameter from 28mm to 550mm, length up to 300mm | 50, 100, 200,250,300,400,500,600, | 0.03,0.04, 0.05,0.06,0.08,0.10 |
With high specific surface area alumina and high oxygen storage rare earth materials as carriers, Pt/Pd/Rh precious metals as active components, it is accurately controlled by quantitative coating method, and the conversion efficiency of CO, HC, NOx is ≥90%, and has excellent anti-aging properties. The products meet the requirements of Euro 4/Euro 5 regulations, and can develop special types and structures of catalysts according to the special needs of customers.

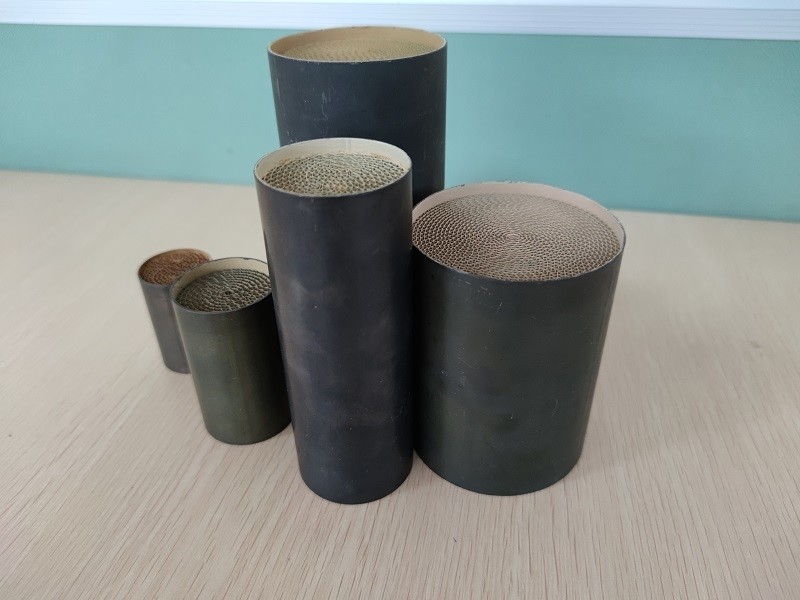

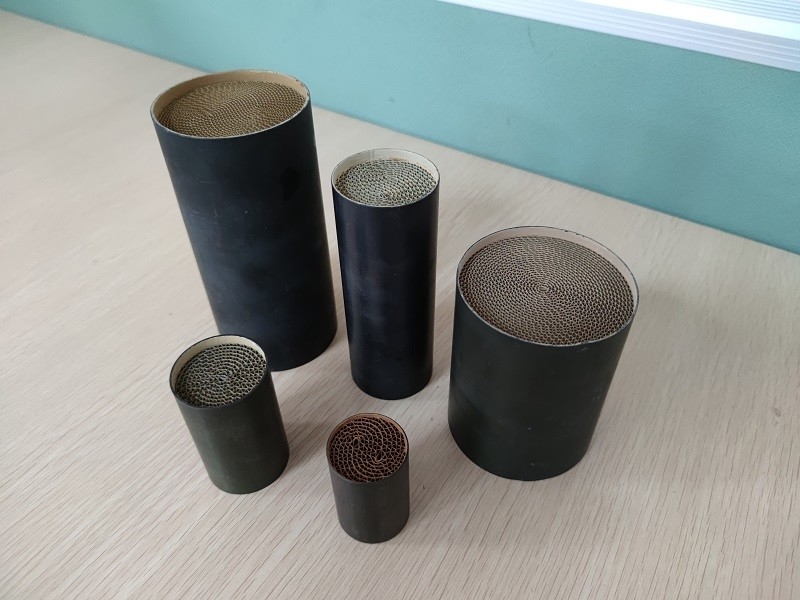

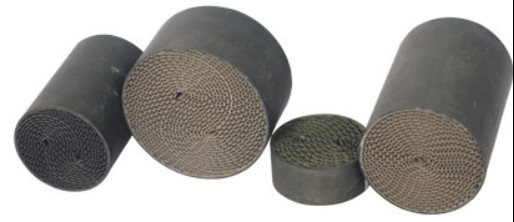

Metallic substrate has the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorcycle. We can make 100CPSI, 200CPSI, 300CPSI, 400CPSI AND 600CPSI honeycomb metallic substrate in various shapes, such as round, oval, racetrack and other customized shapes. We constantly improve the quality and service. Our products get high reputation from customers.
Specification | Cell Density (CPSI) | Emission Standard |
25*50*50 | 100/200/300/400 | Euro 4, Euro 5 |
28*40*30 | 100/200/300/400 | Euro 4, Euro 5 |
28*60*50 | 100/200/300/400 | Euro 4, Euro 5 |
28*100*90 | 100/200/300/400 | Euro 4, Euro 5 |
30*20*20 | 100/200/300/400 | Euro 4, Euro 5 |
30*30*30 | 100/200/300/400 | Euro 4, Euro 5 |
32*25*25 | 100/200/300/400 | Euro 4, Euro 5 |
35*30*30 | 100/200/300/400 | Euro 4, Euro 5 |
35*32*32 | 100/200/300/400 | Euro 4, Euro 5 |
35*40*30 | 100/200/300/400 | Euro 4, Euro 5 |
35*45*45 | 100/200/300/400 | Euro 4, Euro 5 |
35*50*40 | 100/200/300/400 | Euro 4, Euro 5 |
35*52*50 | 100/200/300/400 | Euro 4, Euro 5 |
35*60*50 | 100/200/300/400 | Euro 4, Euro 5 |
35*70*50 | 100/200/300/400 | Euro 4, Euro 5 |
35*70*60 | 100/200/300/400 | Euro 4, Euro 5 |
35*100*40 | 100/200/300/400 | Euro 4, Euro 5 |
35*100*50 | 100/200/300/400 | Euro 4, Euro 5 |
35*100*60 | 100/200/300/400 | Euro 4, Euro 5 |
35*100*80 | 100/200/300/400 | Euro 4, Euro 5 |
35*100*90 | 100/200/300/400 | Euro 4, Euro 5 |
35*120*110 | 100/200/300/400 | Euro 4, Euro 5 |
35*130*120 | 100/200/300/400 | Euro 4, Euro 5 |
35*140*110 | 100/200/300/400 | Euro 4, Euro 5 |
35*200*180 | 100/200/300/400 | Euro 4, Euro 5 |
36*100*100 | 100/200/300/400 | Euro 4, Euro 5 |
38*100*100 | 100/200/300/400 | Euro 4, Euro 5 |
39*60*50 | 100/200/300/400 | Euro 4, Euro 5 |
40*60*50 | 100/200/300/400 | Euro 4, Euro 5 |
40*80*80 | 100/200/300/400 | Euro 4, Euro 5 |
41*100*100 | 100/200/300/400 | Euro 4, Euro 5 |
42*45*45 | 100/200/300/400 | Euro 4, Euro 5 |
42*50*40 | 100/200/300/400 | Euro 4, Euro 5 |
42*50*50 | 100/200/300/400 | Euro 4, Euro 5 |
42*60*40 | 100/200/300/400 | Euro 4, Euro 5 |
42*60*50 | 100/200/300/400 | Euro 4, Euro 5 |
42*100*50 | 100/200/300/400 | Euro 4, Euro 5 |
42*100*60 | 100/200/300/400 | Euro 4, Euro 5 |
42*100*80 | 100/200/300/400 | Euro 4, Euro 5 |
42*100*90 | 100/200/300/400 | Euro 4, Euro 5 |
45*60*50 | 100/200/300/400 | Euro 4, Euro 5 |
45*60*60 | 100/200/300/400 | Euro 4, Euro 5 |
45*75*70 | 100/200/300/400 | Euro 4, Euro 5 |
45*80*70 | 100/200/300/400 | Euro 4, Euro 5 |
45*100*90 | 100/200/300/400 | Euro 4, Euro 5 |
45*110*100 | 100/200/300/400 | Euro 4, Euro 5 |
45*110*85 | 100/200/300/400 | Euro 4, Euro 5 |
45*110*90 | 100/200/300/400 | Euro 4, Euro 5 |
45*112*100 | 100/200/300/400 | Euro 4, Euro 5 |
45*112*40 | 100/200/300/400 | Euro 4, Euro 5 |
45*112*60 | 100/200/300/400 | Euro 4, Euro 5 |
45*120*80 | 100/200/300/400 | Euro 4, Euro 5 |
45*130*120 | 100/200/300/400 | Euro 4, Euro 5 |
45*140*101.6 | 100/200/300/400 | Euro 4, Euro 5 |
45*150*140 | 100/200/300/400 | Euro 4, Euro 5 |
50*100*100 | 100/200/300/400 | Euro 4, Euro 5 |
50*50*40 | 100/200/300/400 | Euro 4, Euro 5 |
52*100*90 | 100/200/300/400 | Euro 4, Euro 5 |
52*105*85 | 100/200/300/400 | Euro 4, Euro 5 |
52*105*85 | 100/200/300/400 | Euro 4, Euro 5 |
52*110*90 | 100/200/300/400 | Euro 4, Euro 5 |
52*125*85 | 100/200/300/400 | Euro 4, Euro 5 |
52*125*85 | 100/200/300/400 | Euro 4, Euro 5 |
60*62*60 | 100/200/300/400 | Euro 4, Euro 5 |
60*75*65 | 100/200/300/400 | Euro 4, Euro 5 |
62*160*150 | 100/200/300/400 | Euro 4, Euro 5 |
62*60*50 | 100/200/300/400 | Euro 4, Euro 5 |
71*99*74.5 | 100/200/300/400 | Euro 4, Euro 5 |
71*99*79 | 100/200/300/400 | Euro 4, Euro 5 |
72*120*110 | 100/200/300/400 | Euro 4, Euro 5 |
72*50*40 | 100/200/300/400 | Euro 4, Euro 5 |
72*85*75 | 100/200/300/400 | Euro 4, Euro 5 |
72*85*75 | 100/200/300/400 | Euro 4, Euro 5 |
80*65*50 | 100/200/300/400 | Euro 4, Euro 5 |
Remark: | Can be designed as per client's requirement. |
About Sinocat
Sinocat Environmental Technology Co., Ltd. (Stock Code: 688737), founded in 2005, is listed on the science and Innovation Board of Shanghai Stock Exchange. The company is committed to the research and development of new materials and new energy technologies such as natural gas (CNG / LNG), diesel, gasoline and other fuel engine emission post-treatment catalysts (converters) and hydrogen fuel cell catalysts. The company is a key high-tech enterprise of the national Torch Plan technology, R&D, manufacture, sales and service.
The Main Entrance
The Office Building
Robots in the Factory
Robots in the Facotry
View of Workshop
View of Work Shop
Inspection
Certificates
Sinocat attached high importance to our system building and is an IATF, ISO and other well-known international organizations certified company.
Packing & Shipment
