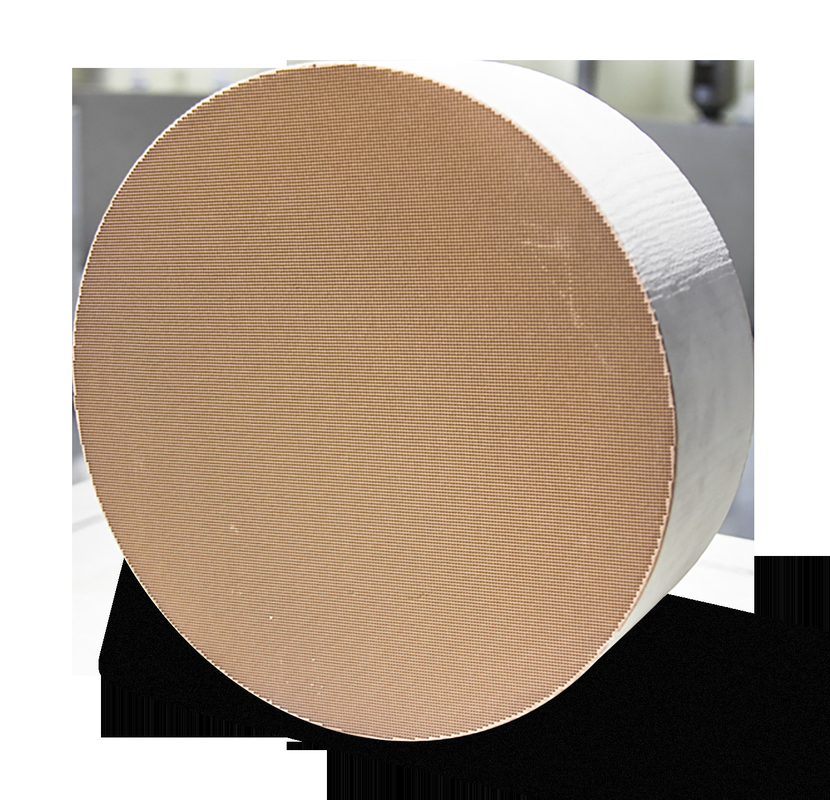

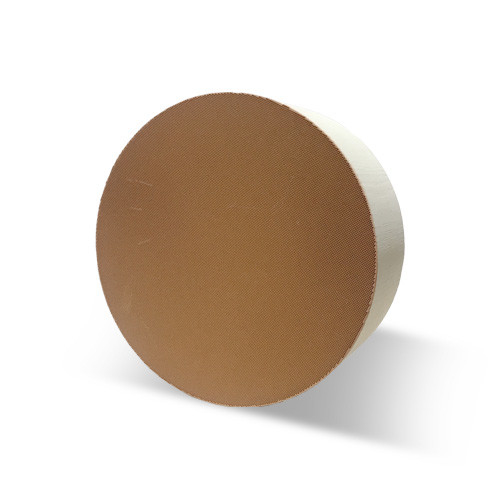

Methane Three Way Catalyst MTWC
The catalysts are made by Pt/Pd coating layer and cordierite or ferrochrome aluminum alloy substrates.
MTWC is used for CNG, LNG and LPG engine exhaust aftertreatment. Catalytic and reduction technolodgy is used to convert the harmful CH4, NMHC, CO pollutants to harmless H2O, CO2 and N2.
Our natural gas three way catalysts can be used for road natural gas engines and meet emission standards up to Euro VI.
Features:
1. Good light-off performance (low light-off termperature) and high pollutant conversion efficiency.
2. Strong sulphur tolerance, exellent ractive activation and stability.
3. Can be used for mutiple application. We can develop different catalysts according to different engine and engine conditions.
4. Wide three way activity window.
5. Following National VI and Euro VI standards.
6. Exellent performance for oxygen storage and air-fuel ratio adjustment.
Technical Parameters:
Specification | Diameter (mm) | Length (mm) | Cell Density (CPSI) | Emission Standard |
Ø150*100 | 150 | 100 | 400 | China 6 |
Ø190.5*152.4 | 190.5 | 152.4 | 400/600 |
Euro 6 China 6 |
Ø190.5*76.2 | 190.5 | 76.2 | 400/600 |
Euro 6 China 6 |
Ø266.7*152.4 | 266.7 | 152.4 | 400/600 |
Euro 6 China 6 |
Ø266.7*76.2 | 266.7 | 76.2 | 400/600 |
Euro 6 China 6 |
Ø285.75*177.8 | 285.75 | 177.8 | 400/600 |
Euro 6 China 6 |
Ø285.75*50.8 | 285.75 | 50.8 | 400/600 |
Euro 6 China 6 |
Ø304.8*177.8 | 304.8 | 177.8 | 400/600 |
Euro 6 China 6 |
Ø304.8*152.4 | 304.8 | 152.4 | 400/600 |
Euro 6 China 6 |
Ø304.8*101.6 | 304.8 | 101.6 | 400/600 |
Euro 6 China 6 |
Ø304.8*76.2 | 304.8 | 76.2 | 400/600 |
Euro 6 China 6 |
Ø330.2*177.8 | 330.2 | 177.8 | 400/600 |
Euro 6 China 6 |
Ø330.2*152.4 | 330.2 | 152.4 | 400/600 |
Euro 6 China 6 |
Ø330.2*177.8 | 330.2 | 76.2 | 400/600 |
Euro 6 China 6 |
Note: | Other specifications are available at request. |
About Sinocat
Sinocat Environmental Technology Co., Ltd. (Stock Code: 688737), founded in 2005, is listed on the science and Innovation Board of Shanghai Stock Exchange. The company is committed to the research and development of new materials and new energy technologies such as natural gas (CNG / LNG), diesel, gasoline and other fuel engine emission post-treatment catalysts (converters) and hydrogen fuel cell catalysts. The company is a key high-tech enterprise of the national Torch Plan technology, R&D, manufacture, sales and service.
The Main Entrance
The Office Building
Robots in the Factory
Robots in the Facotry
View of Workshop
View of Work Shop
Inspection
Certificates
Sinocat attached high importance to our system building and is an IATF, ISO and other well-known international organizations certified company.
Packing & Shipment
